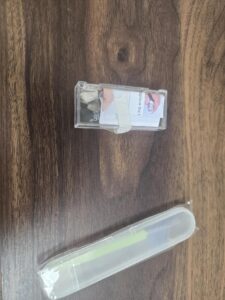

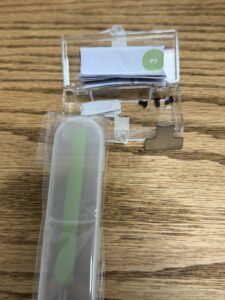

If you have been directed by The Remy Service team to order a Replacement Lens and Installation Kit, please note the kit will be delivered with printed instructions.

Additionally, they are provided here for your convenience:

1. Clean the lens area (you don't want foreign matter in the other side of the lens)

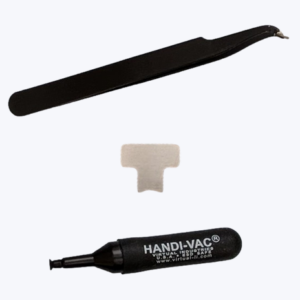

2. Use the flat T-shape sheet metal tool (insert into the 2 slots on nut) by turning counter-counter wise to remove the nut
3. Using the provided forceps to remove the O-ring and then the lens should come off
4. Make sure the area is clean and Do Not touch the new lens with bare hands:
   1. One's hands have oils which will cause it to fail
   2. If one touches the new lens (which arrives in condenser paper) please clean it with 99% Isopropyl alcohol and use a CLEAN microfiber cloth
5. Use the Vacuum Suction tool to place the New lens in its place, replace O-ring, place nut with slots facing out & start nut by turning clockwise with finger then use the flat T-shape sheet metal to tighten

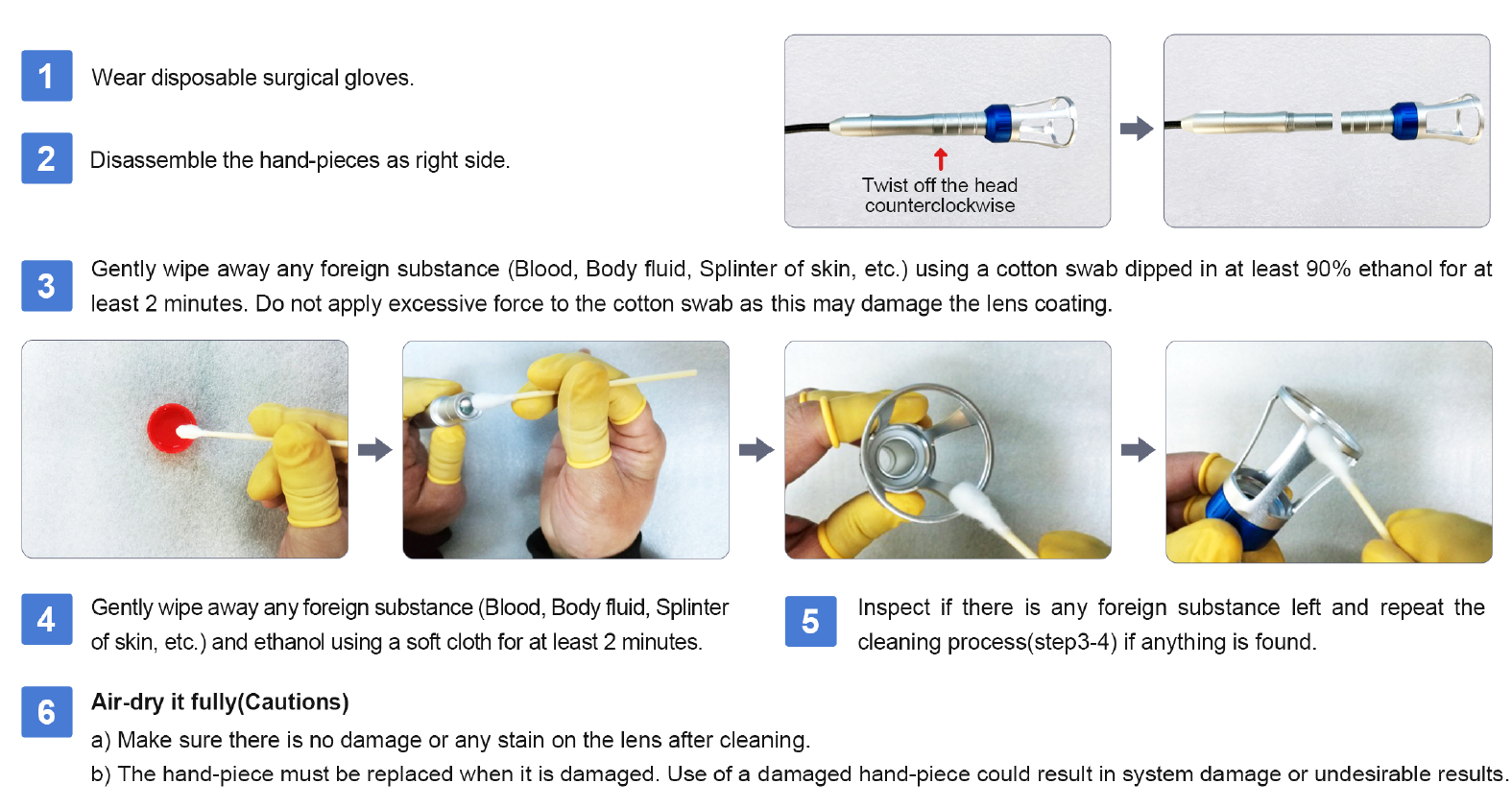

Cleaning Instructions to Protect Your Investment:

**Note - these are only available to Remy Laser and Authorized Dealer Affiliate Customers**
